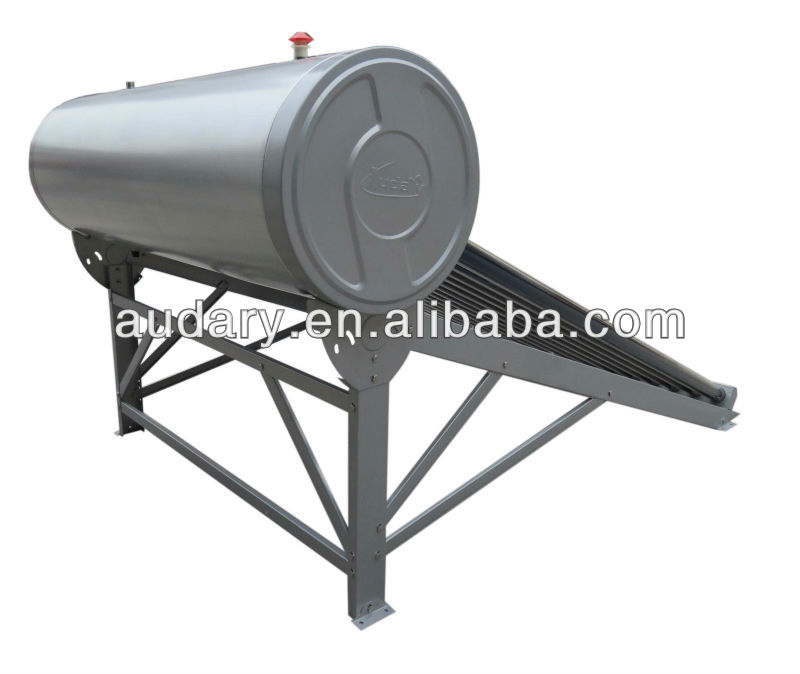

inclined roof Solar Water Heater

FOB Reference Price:Get Latest Price
US $99-229 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Direct / Open Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
Stainless Steel
Certification:
CE, CCC,ISO,
Capacity:
200, 85-300L
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
AUDARY or OEM
Model Number:
ADL-6018-200L
Use:
Bathroom
name:
solar heater
material:
stainless steel
vacuum tube size:
58x1800mm
tank capacity:
100L, 150L, 200L etc
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
full container load: Carton
less container load:wooden box
Port
Shanghai port
Lead Time :
Shipped in 7 days after payment

 Low Price Solar Water Heater:

  1. The material of the outer tank is galvanized steel. The material of inner tank is SUS304 2B.
  2. The life of the vacuum tubes is 15 years.
  3. Stable and reliable performance, well resistance.
  4. Temperature when exposed to sun without water: 250°C, 2.5 hours to boiling point if using single tube.
  5. It resists 25mm hail.
  6. Heat preservation: 72 hours.
  7. Optional accessories: assistant tank, electrical heater.
  8. 5 years warranty.


Vacuum tubes:
Structure:All-glass double-tube co-axial structure
Material:High borosilicate 3.3 glass
External pipe diameter and thickness:Φ=58mm, 1.6mm
Internal pipe diameter and thickness:Φ=47mm, 1.6mm
Absorbing coating:Al-N/Al, Al-N/SS/CU
Vacuum tightness: Vacuum tightness:
Thermal expansion:3.3*10-6/°C
Absorptance:>95%
Emittance:<8%
Stagnation temperature:>220°C
Wind resistance:30m/s
Freezing resistance:-35°C
Hail resistance:25mm
Lifetime: 15 years

Water tank:
Inner tank material:Tainless steel SUS304-2B,0.4mm thickness
Outer tank material:Color steel or stainless steel,0.4mm thickness
Insulation layer:Polyurethane foaming,  50mm thickness
Inner tank diameter:360mm
Outer tank diameter:460mm
Heat preservation:72 hours

Frame:
Material:Galvanized sheet and electrostatic plastic-sprayed, Thickness: 1.5mm. If stainless steel, thickness is 1.2mm
Angle of frame:27°,30°,38°,45°

Accessories :
1. Assistant tank:  3L,5L,8L,12L,25L for your choose
2. Electric heater:1500W
3. Magnesium bar
4. Intelligent controller
