200L high quality solar water heater with changeable frame

FOB Reference Price:Get Latest Price
US $75-192 / Sets | 1 Set/Sets (Min. Order)
Pressure:
Unpressurized
Heating System:
Thermosyphon (Passive)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Circulation Type:
Indirect / Closed Loop (Active)
Connection Type:
Direct-Plug
Installation:
Freestanding
Housing Material:
color-coated sheet
Certification:
CE, CCC, ISO9001, ISO14001
Capacity:
200
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Audary or OEM
Model Number:
ADL-6028
water capacity:
100L-500L
quality warranty:
5-year
OEM:
available
pressure:
unpressurized
connection type:
direct-plug
inner tank:
sus304-2B 0.4/0.5/0.6mm
outer tank:
gavanized sheet/stainless steel
electrical heater:
1.5/2KW
freezing resistance:
-10℃
frame:
changeable at 15 22 45 degree
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
LCL(Less container loading) wooden box
FCL(Full container loading ) export carton box
Port
Shanghai
Product Details

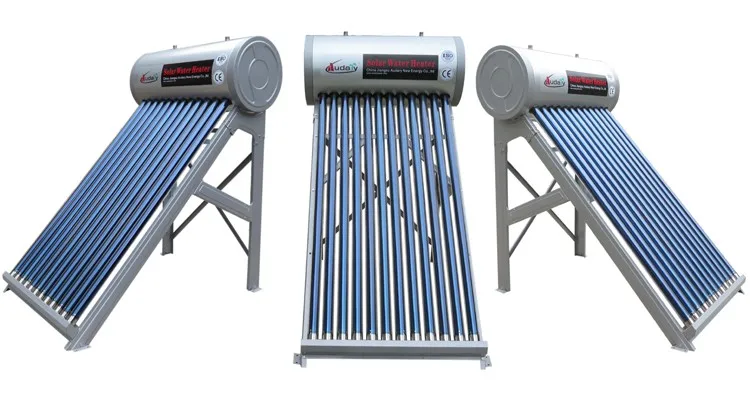

non-pressurized solar water heater ADL-6028

 ADL serial is Thermosyphon solar water heater, That is a kind of solar water heating system that solar collector and storage are connected together with the cylinder storage on the top and collector panel on the bottom. There is no need of pump to push the fluid and no need of pipeline between the collector and storage. It is a simple and safe solution to get heat power from the sun.

Product Introduction

Features

1) The material of the outer tank is Galvanized Steel. The material of the inner tank is SUS304-2B.
2) The life of the vacuum tubes is 15 years.
3) Stable and reliable performance, well resistance, simple structures, easy installation.
4) Temperature when exposed to sun without water: 250°C, 2.5 hours to boiling point if using single tube.
5) It resists 25mm hail.
6) Heat preservation: 72 hours.

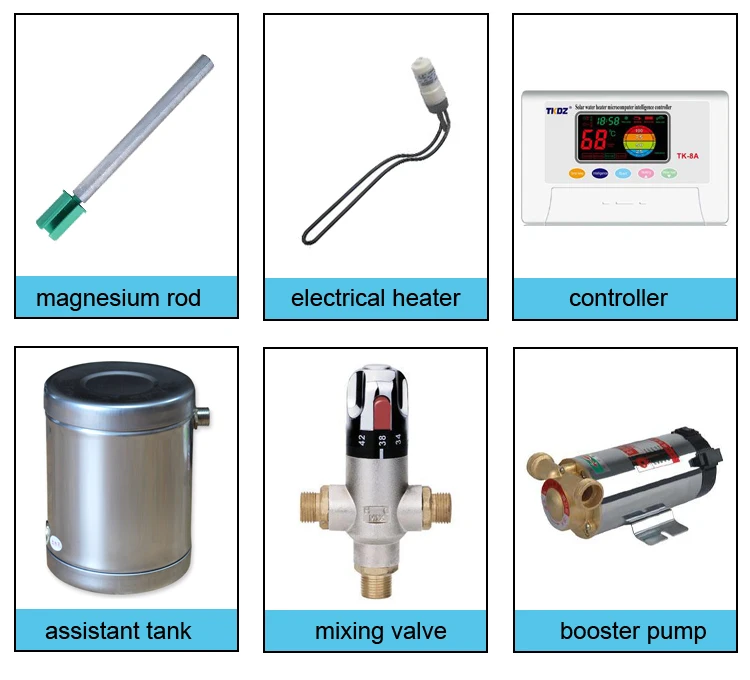

7) Optional accessories: assistant tank, electric heater.
8) 5 years warranty.

How to choose

Choose the item according to the capacity and environment. Choose the capacity according to the people quantity. In your family, one adult shower need about 50 L water. Normally,50 liters is only used for one person's shower. If your country located in torrid zone, 30-40 L is enough.

Product Parameters
Product Model
Tubes Qty.
Tank (L)
Absorbing Area (m2)
Weight (KGS)
Dimension (L×W×H)
Qty. per 20FT/40FT/40HQ
ADL-6028-12
12
130L
0.92
54
1500*1100*1700
57 / 119 / 154
ADL-6028-15
15
165L
1.15
66
1500*1340*1700
45 / 96 / 118
ADL-6028-18
18
200L
1.37
79
1500*1580*1700
36 / 80 /98
ADL-6028-20
20
220L
1.50
89
1500*1740*1700
33 / 73 / 93
ADL-6028-24
24
265L
1.83
108
1500*2060*1700
28 / 63 / 76
ADL-6028-30
30
330L
2.29
129
1500*2540*1700
24 / 51 / 64
ADL-6028-36
36
390L
2.75
155
1500*3020*1700
20 / 44 / 53
Product Details Show

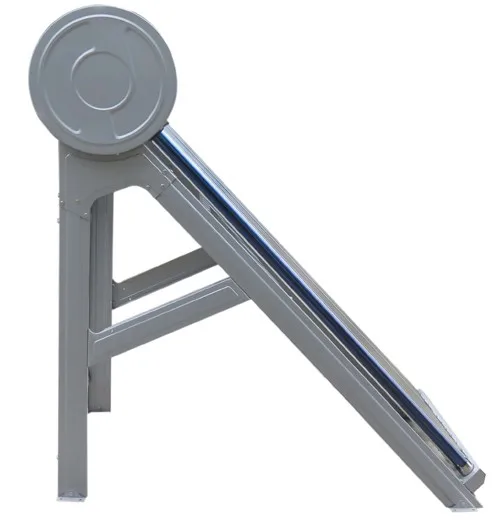

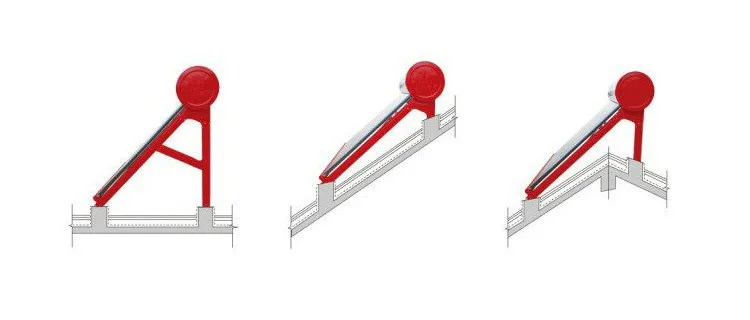

Changeable Frame

Adjust frame to adapt to different roof.

Why Choose Us

About us

1, the company professional to do solar water heaters.

Equipment & technology

2, first-class equipment and advanced technology

Professional Service

3, stable product quality , supply, the good faith management

Our Services

Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We have full stock,and can deliver within short time.Many styles for you to choose.
3. OEM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
5. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.

After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.

After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.

Certificates

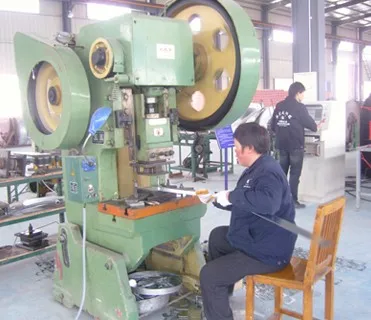

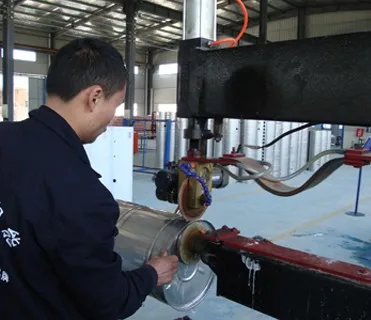

Product Processing
Product Packing
Main Products

pre-heated copper coil solar water heater ADL-PH

Mid. Order: 5sets
more quatities, more cheaper
Price: US $ 146-367/set

stainless steel non-pressurized solar water heater ADL-6038

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 86-279/set

compact pressurized solar water heater ADL-CP

Mid. Order: 5sets
more quatities, more cheaper FOB Price: US $ 197-517/set

flat plate solar water heater ADL-FP

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 219-540/set

heat pipe solar collector ADL-SC

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 126-304/set

split pressurized solar heating system ADL-SP

Mid. Order: 5sets
more quatities, more cheaper
FOB Price: US $ 200-976/set
