heat-pipe solar thermal collector on flat/ pitched Rooftop

FOB Reference Price:Get Latest Price
US $166-500 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Audary or OEM
Model Number:
ADL-58/1800-15
Type:
Vacuum Solar Collector
Application:
Solar Thermal
Pipe Material:
Glass
vacuum tube:
58X1800mm
tube quantity:
10-30
frame:
aluminum alloy
manifold material:
aluminum alloy
insulation material:
rock wool
daily efficiency:
64.7%
certificate:
CE,ISO,SRCC,SOLARKMARK
insulation thickness:
50mm
warranty:
5 years
installation type:
flat & pitched roof
SupplyAbility
SupplyAbility:
Set/Sets per Month samples in 10 working days
Packaging & Delivery
Packaging Details
carton for less than container load
plywood box for full container load
Port
Shanghai
Lead Time :
7 DAYS

                                                                                     Do your favour to green!-----Audary

Split Pressurized thermal solar collector :

Features:


1) Reliable and efficient twin-glass solar tubes;
2) Copper heat pipes for rapid heat transfer;
3) Easy plug-in installation;
4) Free maintenance;
5) Suitable for mains pressure water (up to 1.0 bar);
6) Corrosion resistant silver brazed copper header;
7) Aluminum frame;
8) Powder coated (black, brown or silver) aluminum casing;
9) Stable solar conversion during the day;
10) The perfect solar collector for domestic solar water heater systems;
11) Ideal for commercial solar water heating applications.

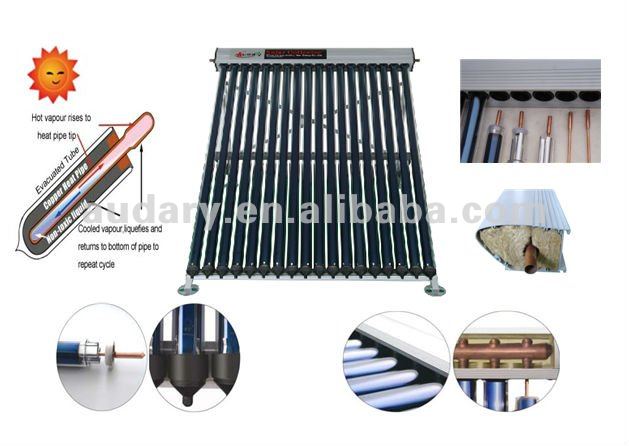

Work Principle:


1) The operation of the solar collector is very simple.
2) Solar absorption: solar radiation is absorbed by the solar tubes and converted into heat.
3) Solar heat transfer: heat pipes conduct the heat from within the solar tube up to the header pipe
4) Solar energy storage: water is circulated through the header, via intermittent pump cycling.Each time the water circulates through the header, the temperatures is raised by 5-10C. Throughout the day, the water in the tank is gradually heated.



Technical Specification:


Manifold Casing Material: Aluminum
Frame Material: Aluminum

Header Pipe Material: Copper
Heat Pipe Material: Copper
Insulation: Rock Wool
Rubber Seals and Rings UV Stabilized High Temperature Silicon Rubber
Test Pressure: 12 bar
Collector Mounting Flat Roof/Inclined Roof
Mounting Angle: 15-90C
Inlet: 3/4'







Heat pipe Solar collector
DESCRITION:
Evacuated tubeLen(mm)1800mm
Dia(mm)Φ58
Heat pipe Solar collectorHeader pipeDiamter: 35mm ,1.0mm
Heat Pipe

Red copper TU2+water; transfer power: ≥150W;

Working pressure: 0.6Mpa

Evacuated tube

High borosilicate 3.3 glass;

Vacuum tightness: P≤5*10-3(Pa)

Insulating LayerRock wool
Manifold casingAluminum Alloy,Thickness:2.0mm
FrameAluminum Alloy,Thickness:2.5mm
CERTIFICATION:SOLAR KEYMARK, CE &USA SRCC





Show details:

Packages:

Production line:



Certifications:
