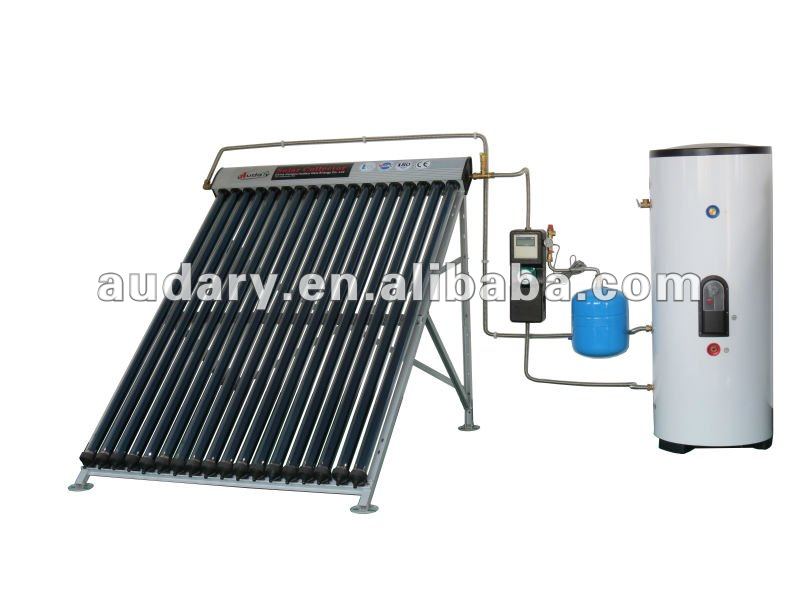

2015 Split Pressurized Solar Hot Water System

FOB Reference Price:Get Latest Price
US $658-1,520 / Sets | 2 Set/Sets Samples (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Evacuated Tube
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Thermosyphon (Passive)
Connection Type:
Split
Installation:
Freestanding
Housing Material:
Imported galvanized sheet
Certification:
CE, ISO9001, SRCC & solar key mark
Capacity:
300
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
AUDARY OR OEM
Model Number:
ADL-SP
inner water tank:
SUS304-2B 1.2mm
outer water tank:
galvanized steel 0.5mm
insulation layer of water tank:
polyurethane foam 55mm
solar collector manifold casing:
aluminum alloy 2.0mm
insulation layer of solar collector:
rock wool
heat pipe:
copper
bracket:
aluminum alloy 2.5mm
evacuated tube:
borosilicate glass 3.3
Packaging & Delivery
Packaging Details
less than container load in wooden cases
full container load in cartons
Port
SHANGHAI
Lead Time :
samples as usual for 7-10 weekdays



Details of CE high quality split pressurized solar hot water system(Solar keymark approal):



 Descriptions

 solar collector:

1.header pipe material is copper and the thickness is 1.0mm

2.insulation layer material is rock wool

3.manifold casing material is aluminum alloy and the thickness is 2.0mm

4.bracket material is aluminum alloy and the thickness is 2.5mm

5.evacuated tube material is 3.3 borosilicate glass

6.heat pipe material is copper

7.5 years warranty

8.copper heat pipe for rapid heat transfer

9.max pressure bearing:8 bar/116 psi

10.corrosion resistant brazed copper header

11.easy plug-in installation



Tankmaterial of inner tankSUS 304-2B food-grade stainless steel,Φ450mm
material of outer tankcolor-coated galvanized steel,Φ550mm
thickness of inner tank1.5mm
thickness of outer tank0.6mm
upper coilΦ12*1.0*12(optional)
lower coilΦ12*1.0*15
electrical heater power1.5kw
Insulation layer50mm, polyurethane foaming
liter200L
Heat CollectorVacuum Tube Heat Pipehigh-borosilicate glass, cooper heat pipe(Φ8/14mm)
size of vacuum tubesΦ58x1800mmx20pcs
Absorbsion Area1.6 m²
Work StationFastenersStainless steel screws.
Sealing ringMacromolecule silicone rubber.
othersP/T valve, electrical heater,magnesium rods, relief valve
SpecificationHeat preservation72 hours
Hail resistance20-30mm
Max Water TemperatureCan reach at least 95 degree
Circulation Indirect /Closed loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Direct-plug
Absorption Rate≥0.95±0.02
Emission Rate≤0.20±0.02
Vacuum TightnessP≤5.0*0.0001Pa
Idle sunny property parameresY=220-260./KW
Total Weight161KGS
CertificationsSolar Keymark, SRCC, SGS, CE, ISO9001
Warranty5 years





Certificates:ISO,CE,SRCC,Solar Keymark-EN12975







 Mini diagram of installation



collector and storage tank may be placed in separate places. The tank can be placed indoor. And the collector can be put on the inclined roof or flat place! Module design, free combinatiion, perfectly matches with the building plus automatic digital operation control.

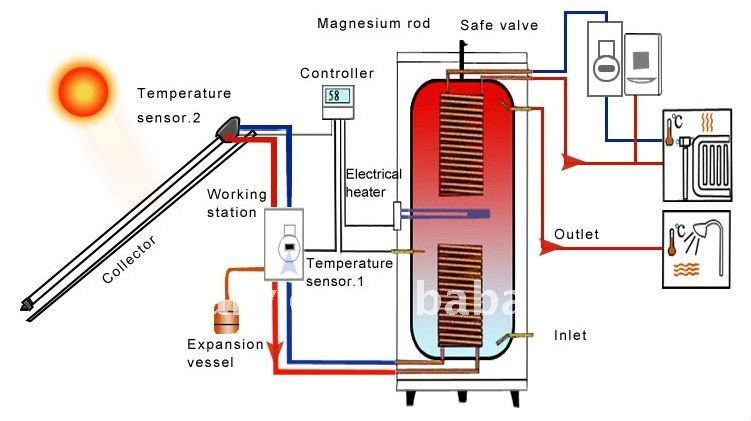

Working principle:

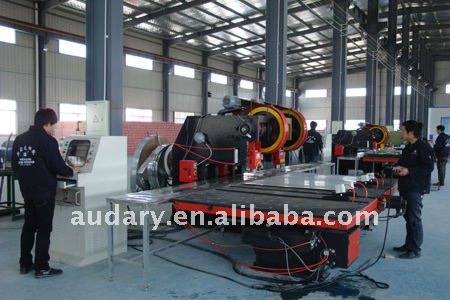

The cormer of our workshop:

Certifications

Our certifications of 2015  Solar  Water Heater



Company Information

China Jiangsu Audary New Energy Co.,LTD

We are one of the leading solar water heater manufacturers in China since 1995. Our production has passed

CE,ISO,SOLAR KEYMARK,SRCC certificates which can prove our high quality performance. Also we have solar

our production all over the world and enjoy high reputation.
