Quick Details

  • Type: Evacuated Tube
  • Pressure: Pressurized
  • Circulation Type: Indirect / Closed Loop (Active)
  • Heating System: Thermosyphon (Passive)
  • Connection Type: Direct-Plug
  • Installation: Freestanding
  • Housing Material: Colour steel
  • Certification: CE, ISO9001
  • Capacity: 200
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: AUDARY,OEM
  • Model Number: ADL-CP
  • Usage: household or small project heating water
  • Hot water by: solar energy
  • Bill of charge: free
  • Tube numbers: 8 tubes-36 tubes
  • Hot water can provide: 80L-360L
  • Working pressure: 6 Bar
  • Installation methods: compact
  • Working temperature: -35to95
  • Frame material: colour coated steel
  • Warranty time: 5 years

Packaging & Delivery

Packaging Details carton packaging for full container load
carton and wooden packaging for less than container load
Delivery Time Shipped in 15 days after payment

Detailed Product description compact pressurized solar water heater system


Product Description





Advantage:

1.Super anti-reode outer tank: outer tank is made of colorful steel. Best anti-erode material.Espeically for the seaside area.

2.Feeding water atomatic: With speicial design ,feeding water automatic,and ensure the outlet water as stable temperatue.

3.Copper heat pipes for rapid heat transfer ,No water through the tube,so it can good working in winter without freeze.

4. Stable solar conversion during the day.





Features:



1.Tank material: interior SUS 304-2B

2.Outer: Color steel /Stainless steel

3.Frame:Aluminum alloy / Galvanized steel/Stainless

4.Heat preservation: 72hours

5.Hail resistance: 25mm

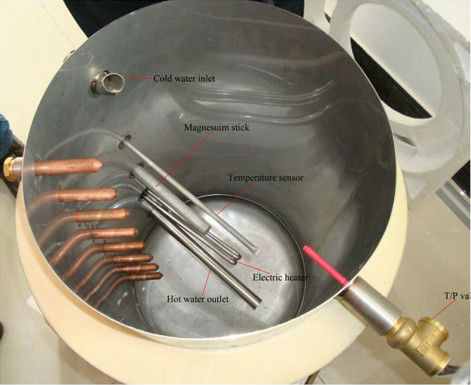

Product partial close-up:





 Changable bracket for different roofs:













Specifications:

Product Model Tubes Qty. Tank (L)Absorbing Area (m2)Weight (KGS) Dimension  (L×W×H)      Qty. per 20FT/40FT/40HQ
ADL-CP-12      12    120    0.92        76    1580*1100*1690 58 / 123 / 156
ADL-CP-15      15    150    1.15        88    1580*1340*1690 46  /  98  / 120
ADL-CP-18      18    180    1.37        102    1580*1580*1690 37  / 83  / 102
ADL-CP-20      20    200    1.50       110    1580*1740*1690 34  /  75  /  93
ADL-CP-24      24    240    1.83       136    1580*2060*1690 30   /  63  / 77
ADL-CP-30      30    300    2.29       167    1580*2540*1690 25  /  52  /   65



Accessory:



Certifications:








Packaging & Shipping



Packaging & Delivery:







Company Information





About our factory:







Comprehending the increasing rate of electricity consumption, we offer our clients an energy efficient range of Industrial model solar water heaters. These Industrial model solar water heaters are exclusively designed by us, following international standards. Easy to install, our solar water heaters are compact sized and occupies very less space than any other models available in market. These ensure high functionality and low power consumption.












Our Services





Features:







  • Power saving
  • Compact design
  • Easy to install



Solar water Heaters are known to have the fastest repayment of Investment. We consider almost all technical aspects and its wide domestic application for its optimum output, while designing the system.



These durable products are simple to use, easy to install and are offered in different specifications. Proper use of raw material in the production has made these products highly efficient and wear & tear resistance.
